CONFIGURAZIONI STANDARD E CAVI

Conf. 01

05 Analog axes output. (+/-10 Vcc) opto-coupled
03 Digital axes output PWM (square waves 12 Vcc NPN)
05 Differential encoder input (line driver)
02 Analog input (+/-10 Vcc) opto-coupled
32 Digital input 24 Vcc PNP opto-coupled
20 Digital output 24 Vcc PNP opto-coupled

Conf. 02

07 Analog axes output. (+/-10 Vcc) opto-coupled
03 Digital axes output PWM (square waves 12 Vcc NPN)
06 Differential encoder input (line driver)
04 Analog input (+/-10 Vcc) opto-coupled
96 Digital input 24 Vcc PNP opto-coupled
60 Digital output 24 Vcc PNP opto-coupled

Conf. 03

10 Analog axes output. (+/-10 Vcc) opto-coupled *
06 Digital axes output PWM (square waves 12 Vcc NPN) **
10 Differential encoder input (line driver) ***
04 Analog input (0/+10 Vcc) opto-coupled
64 Digital input 24 Vcc PNP opto-coupled
40 Digital output 24 Vcc PNP opto-coupled

Conf. 04

12 Analog axes output. (+/-10 Vcc) opto-coupled *
06 Digital axes output PWM (square waves 12 Vcc NPN) **
11 Differential encoder input (line driver) ***
06 Analog input (+/-10 Vcc) opto-coupled
128 Digital input 24 Vcc PNP opto-coupled
80 Digital output 24 Vcc PNP opto-coupled

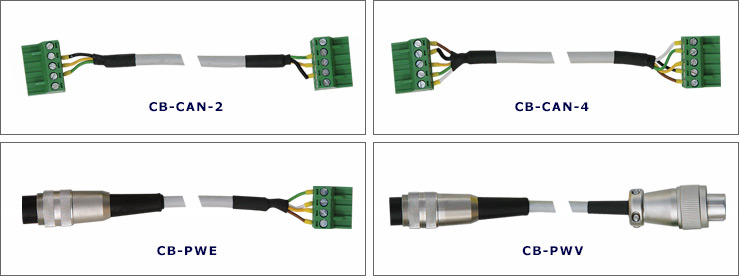

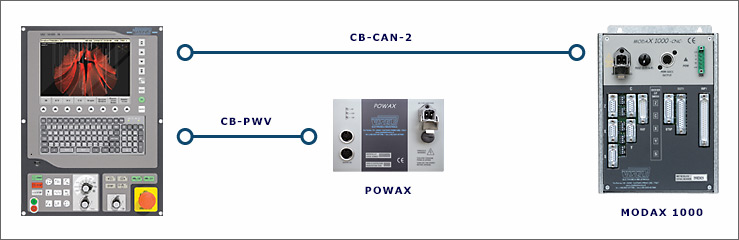

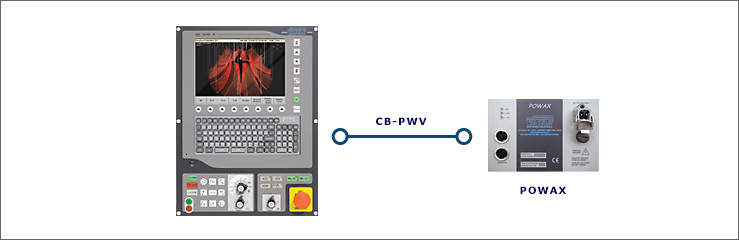

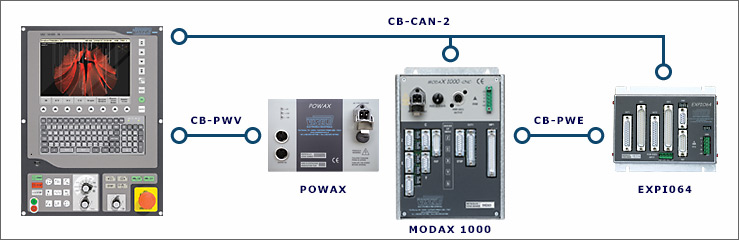

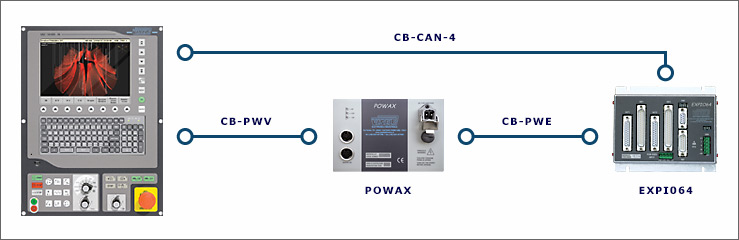

CAVI
