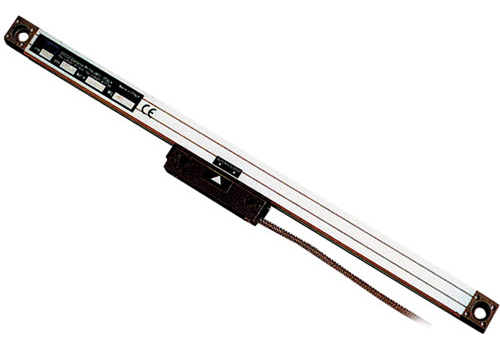

Position transducer mod. MIDI

Position transducers mod. MIDI, utilizes optic refraction on steel tape reading technology.
Of reduced dimension, but similar to position transducer mod. VTL.
They are suitable for application on machines with space problems: profile projector, E.D.M., diametral lathes...
The achievable resolution are the following: 0,01/0,005.
The extreme useful travel is 1250mm.
THE READING HEAD IS COMPLETELY INTERCHANGEABLE WITH POSITION TRANSDUCER MOD. VTL.

ELECTRIC FEATURES

  • Supply voltage: Vcc. 12V (or 5 Vcc. on request) +/- 5% - Icc. 100 mA
  • Signal phase displacement: 90° +/- 15%
  • Output signals: No. 2 square waves and push pull zero point (Line drive on request)

MECHANICAL FEATURES

  • Standard dimension: 50-1250 mm (50 mm to 50 mm)
  • Zero point: Every 100 mm standard (or required position)
  • Head cable lenght: 4 meters with end connector (or other size if required steel protection cable)
  • Grid pitch: 40 µm - 20 µm
  • Working temperature: 0°C + 50°C
  • Store temperature: -30°C + 70°C
Resolution System accuracy Max reading speed
0,5 mm +/- 0,5 x m 100 m/min
0,01 mm +/- 0,01 x m 50 m/min
0,005 mm +/- 0,005 x m 25 m/min

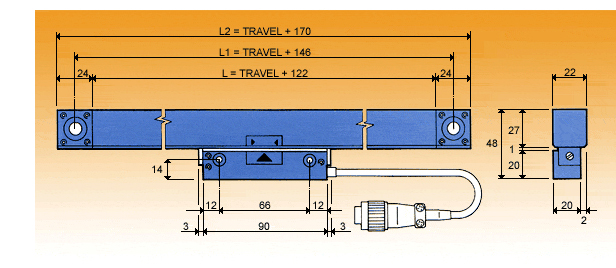

DIMENSIONI
